7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine

Name: 75kw 2000RPM Cable Twisting Machine 041 052 064mm Wire Twist Machine
Brand: FUCHUAN
Price: 1 USD

Quality 7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine for sale

Brand Name : FUCHUAN

Model Number : FC 1+6(630F)+12

Certification : CE

Place of Origin : China Kunshan

MOQ : 1set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 500 set per year

Delivery Time : 8 weeks

Packaging Details : simple packing

Wire : 19pcs copper wires φ0.16mm - φ0.64mm one time bunching

Bobbin : DIA 630 or 250mm

wire : 19pcs copper wire

max speed : 2000RPM(4000TPM)

pay off motor power : 5.5kw

take up motor power : 7.5kw cable braiding machine

pay off bobbin : DIA 500mm

Contact Now

Fuchuan Copper Wire Bunching Machine 1+6(630F)+12 mainly for 0.41 / 0.52 / 0.64mm

Quick Details:

Fuchuan 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time

Characteristics:

(1). It is the latest developed machine.

(2). This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)

(3). Low power, small floor place, low noise and other merits.

Specifications:

Equipment models	1+6+12(200bobbin)	FC 1+6+12(630bobbin)
Twisting usage	It is applicable to bunching 19pcs copper wires in one time
Single wire dia(mm)	φ0.16-φ0.64
Stranding section area (mm²)	0.38-6.0
Pitch(mm)	11.6-100(34zones)
Direction of lay	Optional for right or left
Pay off bobbin size	8inch,9inch	φ630φ125475
Max rotating speed	2000(4000twist)	2000(4000twist)
Pay off type	Mechanical friction	Magnetic tension
Pay off machine power	5.5KW	7.5KW
Take up bobbin size	φ630φ125475	φ630φ125475
Pay off Inverter power	7.5KW	7.5KW
Main motor power	7.5KW	7.5KW
Take up inverter power	7.5KW	7.5KW
Tension control method	Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	5.0kgf	5.0kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	10000L2500W1650H	10000L2500W1650H

Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container

Product Tags:

cable twisting machine

wire twist machine

2000RPM Cable Twisting Machine

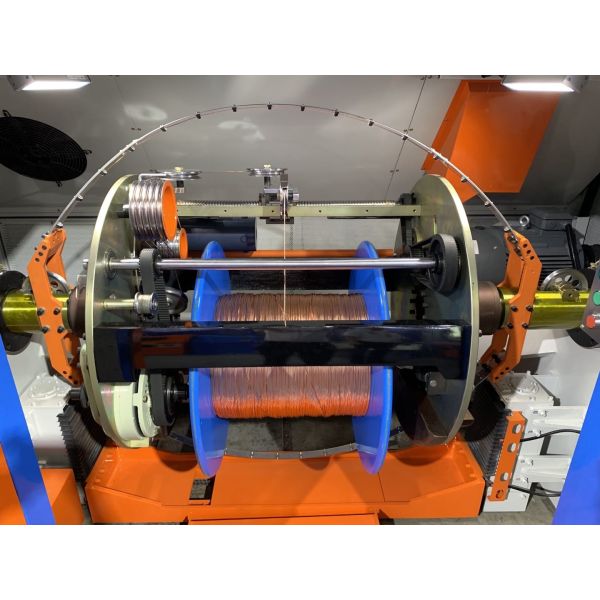

7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine Images
